Lab 3

Modeling for OpenAPI

OpenAPI is a standard, programming language-agnostic interface description for HTTP APIs. In this lab you will use DMA to create a model representation of an OpenAPI YAML file, and visualize it in a class diagram.

Create a Model Project for OpenAPI

  1. Create a new model project

create new model project

  1. Give the new project the name OpenAPI and click Next

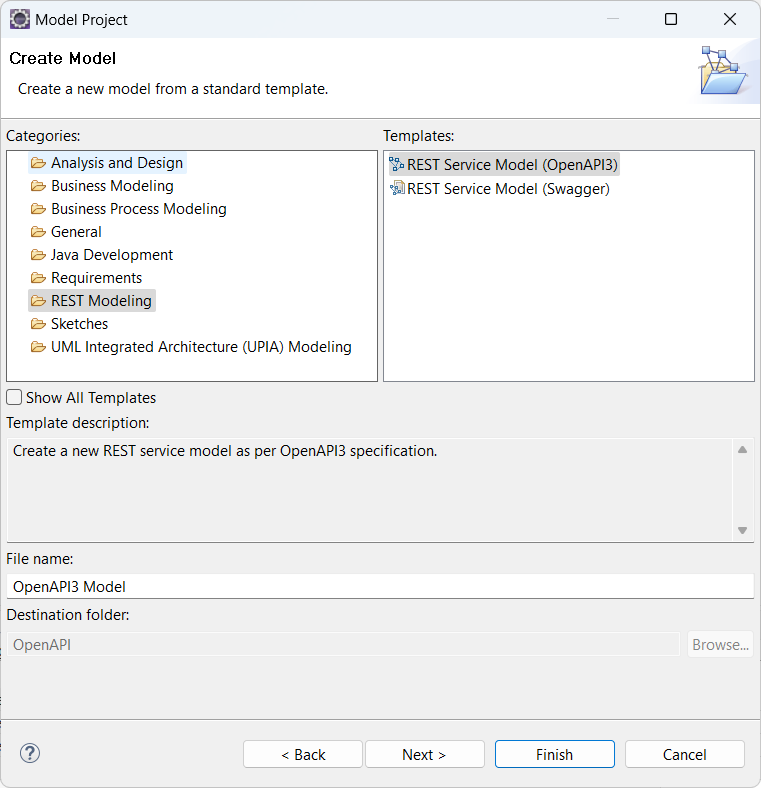

  2. Select the REST Service Model (OpenAPI3) template and click Finish

select openapi3 template

Import an OpenAPI YAML file and create a model representation for it

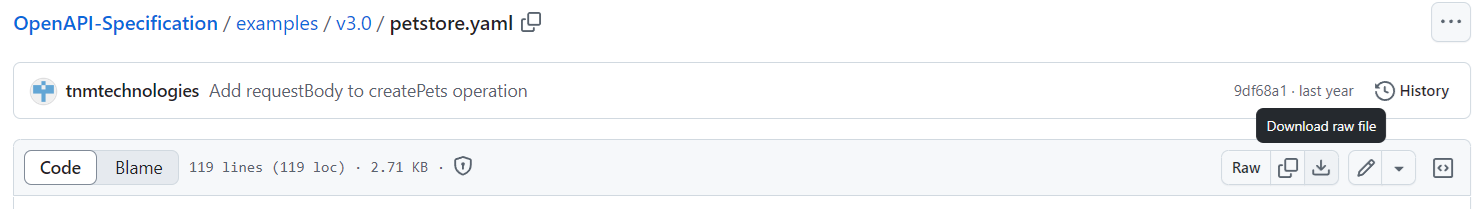

  1. The OpenAPI specification provides several sample APIs. We will import an API that describes a pet store. Download the YAML file for this API from a web browser. Save it in a folder on the lab computer.

download the yaml file

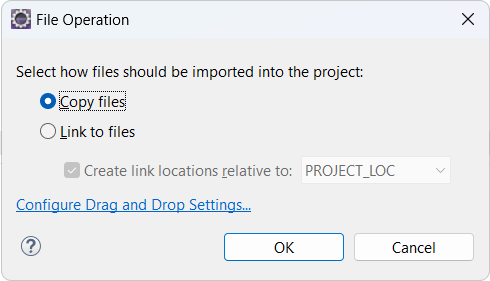

  1. Import the YAML file into the OpenAPI project by dragging it from the folder where you saved it and dropping it onto the OpenAPI project. Select to copy the file into the project.

copy the file into workspace

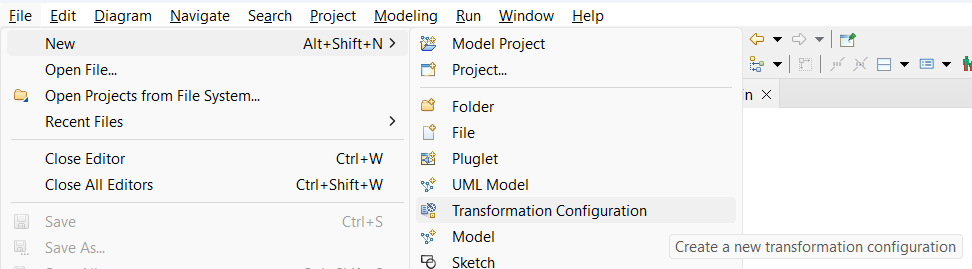

  1. Select the OpenAPI model project and perform the command File - New - Transformation Configuration

create new transformation

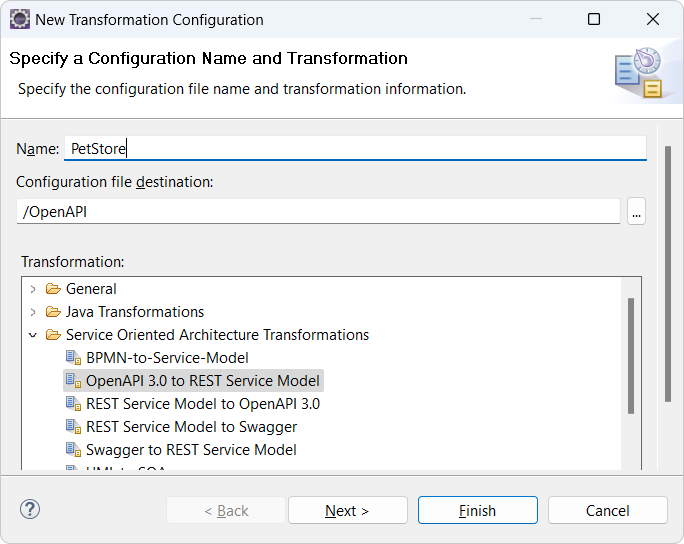

  1. Give the transformation configuration a name ("PetStore) and select OpenAPI 3.0 to REST Service Model in the list. Then click Finish.

transformation wizard

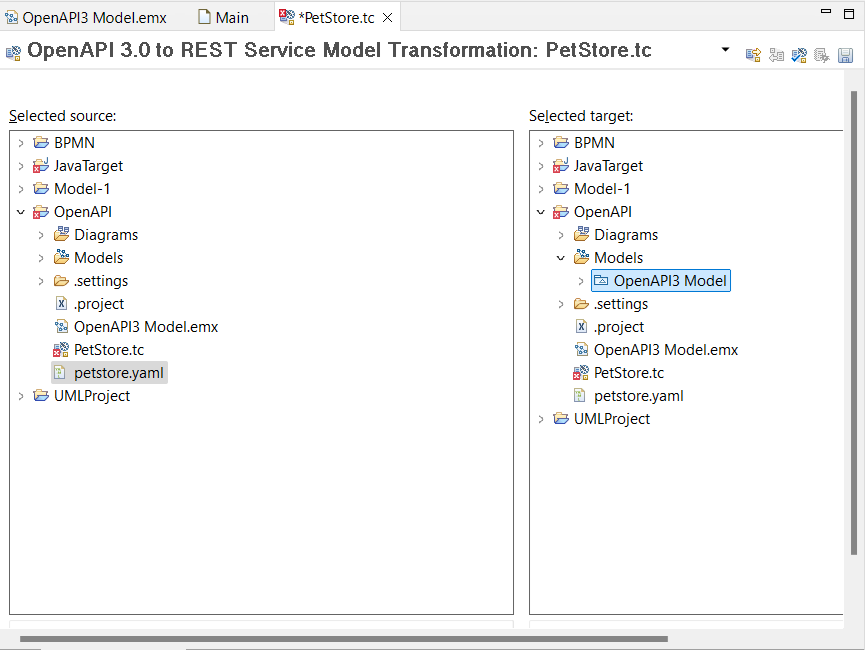

  1. The transformation configuration editor opens and shows there are errors. This is because we haven't yet specified the source and target for this transformation. Let's do it now. Click the Source and Target tab in the transformation configuration editor and set the YAML file as the source, and the OpenAPI3 Model as the target.

select source and target

  1. To make the errors go away click the button to Validate the transformation configuration in the transformation configuration editor toolbar.

validate tc

  1. Finally, to run the transformation click the button Run OpenAPI 3.0 to REST Service Model.

run the transforamtion

  1. DMA will now transform the YAML file into a model and insert it into the target model. A Merge dialog will appear to inform about the model elements that will be merged into the model. Click OK to proceed.

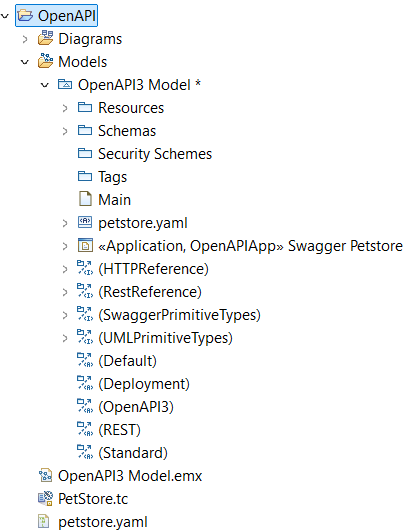

  2. The model representation of the Pet Store API is now available in the OpenAPI model.

petstore model

Visualize the API model graphically

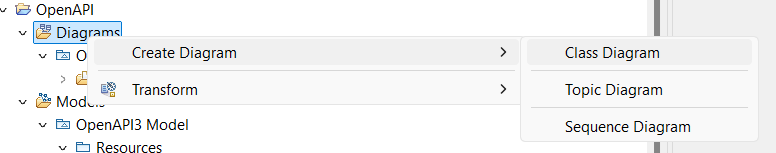

  1. Create a class diagram from the context menu of the "Diagrams" virtual folder. In the dialog give it a name ("PetStoreAPI") and press OK.

create class diagram

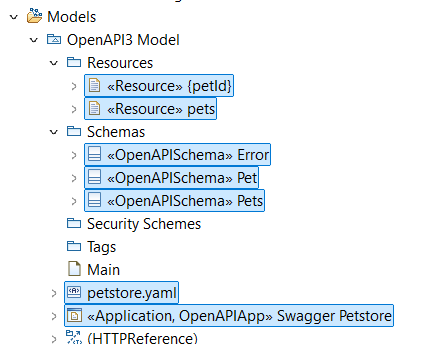

  1. Select some of the model elements in the Project Explorer.

select model elements

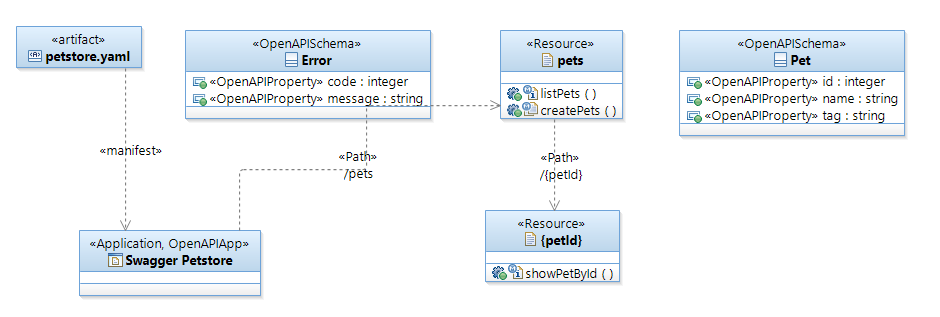

  1. Drag them from the Project Explorer and drop them onto the class diagram.

work in class diagram

Conclusion of Lab 3

This lab has introduced you to how OpenAPI models can be created in DMA. Here we started by importing an existing YAML file, but you can of course also start by creating the model from scratch. DMA also supports generating the OpenAPI YAML file from the model. The steps are very similar to those mentioned above. Feel free to try it! (Hint: The transformation configuration to use for this is called REST Service Model to OpenAPI 3.0).
